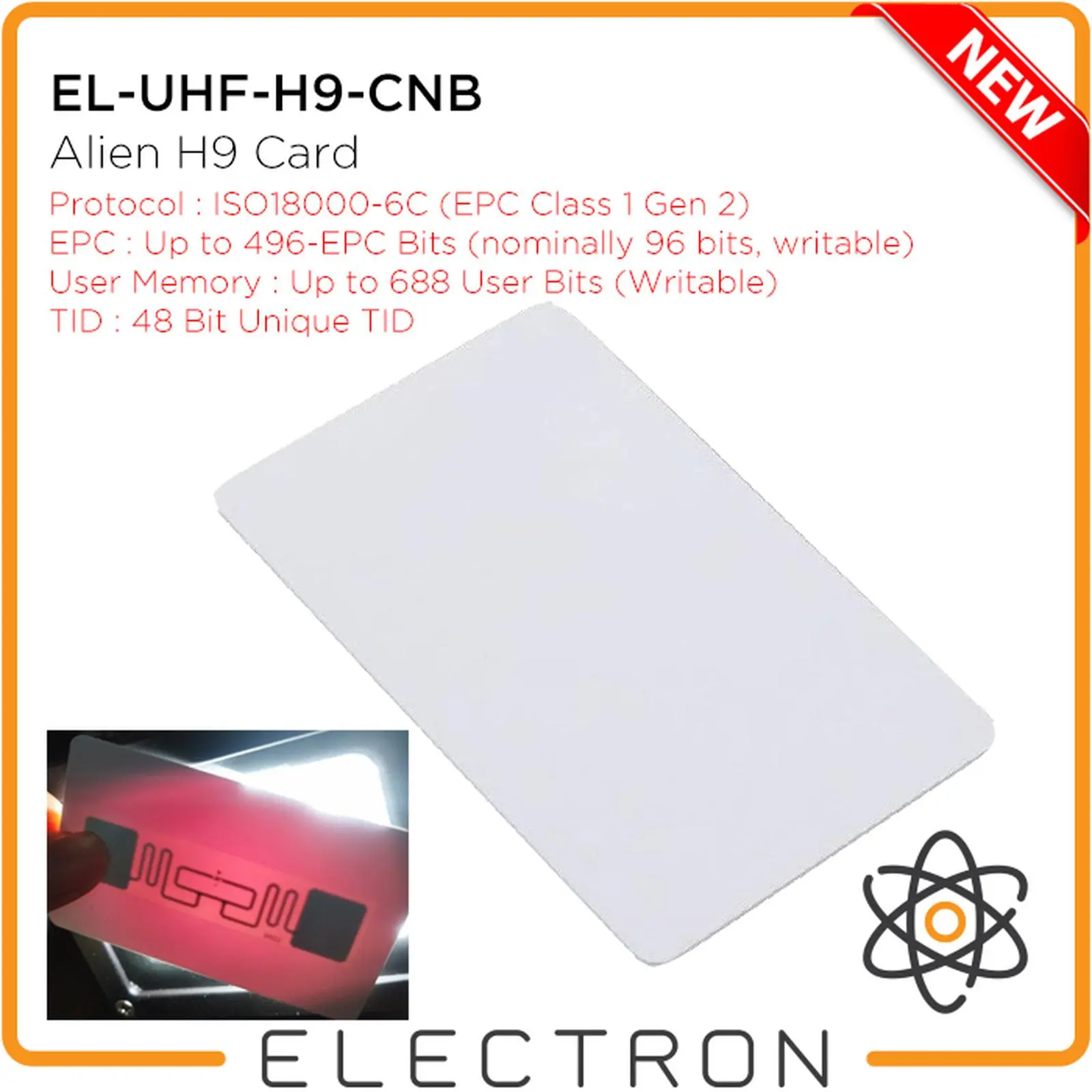

EL-UHF-H9-CNB
Kartu UHF RFID dengan chip Alien H9. User memory hingga 688 bits.
Spesifikasi
- Chip: Alien Higgs-9
- Memory: 1024-Bits of NVM/RAM Memory
- EPC: Up to 496-EPC Bits (nominally 96 bits, writable)
- User Memory: Up to 688 User Bits (Writable)
- TID: 48 Bit Unique TID
- Frequency: 860-960Mhz
- Protocol: ISO18000-6C (EPC Class 1 Gen 2)
- Size: 86mm x 54mm (ISO CR80 Card Size)
Spesifikasi Chip
- Merk: Alien
- Chip: Higgs 9 (H9)
- Protokol:
- ISO / IEC18000-6C
- EPC global Class 1 Gen 2
- EPC: 96 bits (expandable up to 496 bits)
- TID: 48 bits
- User memory: 688 bits
- Access Password: 32 Bit
- Kill Password: 32 bit
- Lock:
- User Memory can be Block Perma-Locked as well as read password protected in 256 bit Blocks
- Read sensitivity: Up to -20 dBm
- Write sensitivity: Up to -18 dBm
- Operating Temperature: -50°C to +85°C
- Operating Frequency: 840 to 960 MHz
- Data Retention: 50 Years
- Programming cycles: 200,000 write cycles at 25°C
